115hp - 87.5 Nm
Light and compact
Monocross rear suspension with horizontal shock.
Asymmetric CF die-cast aluminium swingarm.
Raw and linear torque output
Slim and lightweight CF die-cast aluminium frame

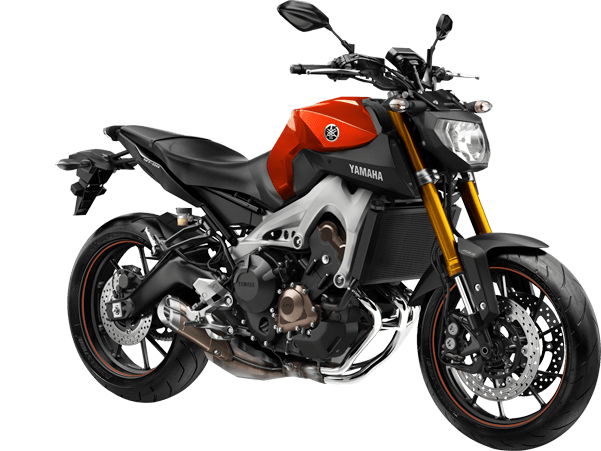

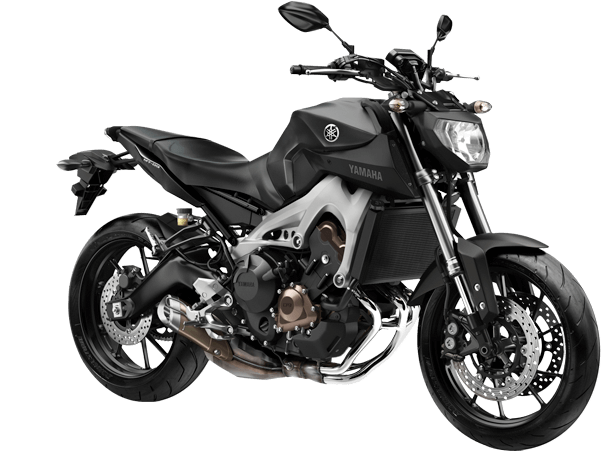

MT09
Discover Your Dark Sider
115hp - 87.5 Nm
Light and compact
Monocross rear suspension with horizontal shock.
Asymmetric CF die-cast aluminium swingarm.
Raw and linear torque output
Slim and lightweight CF die-cast aluminium frame
Engine Type
3-cylinder, Liquid Cooled, 4-stroke
Displacement
847 m2
Bore X Stroke
78,0 mm X 59,1 mm
Compression Ratio
11,5 : 1
Maximum Power
84,6 KW (115 PS) @ 10.000 RPM
Maximum Torque
87,5 NM (8,9 KG-M) @ 8.500 RPM
Lubricant System
Wet Sump
Clutch Type
Wet Multiple Disc
Carburator
Fuel Injection
Ignition System
TCi
Transmission Type
Constant Mesh, 6 Speed
Final Tranmission
Chain
Overall length
2.075 MM
Overall Width
815 MM
Frame
Diamond
Front Suspension System
Telescopic Forks
Front Travel
137 MM
Caster Angle
25
Rear Suspenssion System
Swingarm (Link Type Suspenssion)
Rear Travel
130 MM
Front Brake
Hydraulic dual disc 298MM
Rear Brake
Hydraulic single disc 245MM
Front Tyre
120/70 ZR17 M/C
Rear tyre
180/55 ZR17 M/C
| Ignition system | TCI |
